Product Overview



Pultruded fiberglass marker stakes engineered for professional snow removal contractors, highway departments, and industrial property management. Designed to delineate road edges, utility lines, and parking perimeters, these stakes maintain structural resilience under recurring physical impacts and sub-zero temperatures.


Manufactured via continuous fiber-reinforced polymer pultrusion, each unit combines high tensile resilience with retroreflective visibility. Supplied directly from our industrial manufacturing plant to global distributors and municipal supply chains.

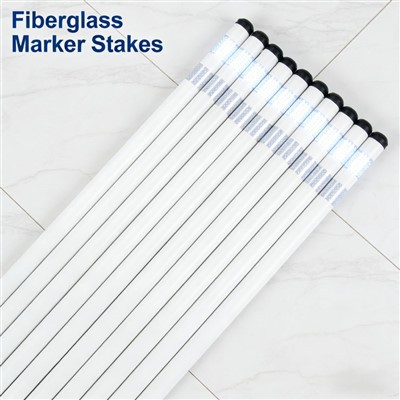

  • Fiberglass Marker Stakes
    This FRP marker stake is specially developed for **largescale agricultural management**. It is used for plot division, crop identification, boundary warning and area positioning. It has excellent weather resistance and wind resistance,...
    view more
  • Fiberglass Reflective Stakes
    These reflective stakes made of FRP are specially customized for safety signs in nighttime or low-light environments! They primarily address the nighttime warning needs of outdoor areas. The high-brightness reflective design ensures...
    view more

Technical Specifications


Parameter

Standard Specification

Customization Options

Manufacturing Process

Continuous thermal pultrusion (E-glass roving + polyester resin)

Vinylester resin matrix for enhanced chemical resistance

Outer Diameter (OD)

5/16 in (8 mm), 3/8 in (9.5 mm), 1/2 in (12.7 mm)

Custom profiles up to 3/4 in (19 mm)

Standard Lengths

48 in (1.2 m), 60 in (1.5 m), 72 in (1.8 m), 96 in (2.4 m)

Cut-to-length from 24 in to 120 in

Reflective Sheeting

ASTM D4956 Engineer Grade / High-Intensity Prismatic (HIP)

Single band, double band, or 360-degree spiral wrap

Color Options

High-visibility Orange, Fluorescent Yellow, Lime Green

Pantone color matching for municipal orders

Operating Temperature

-40°C to +80°C

Extended low-temperature cold-crack formulation

UV Protection Package

0.5% Tinuvin UV absorber blended directly into resin

ASTM G154 accelerated weathering compliance

Bottom End Configuration

Chisel point / Pencil point

Flat cut or factory-fitted steel driving tip



Fiberglass Marker Stakes factory



Key Features & Performance

Flexural Recovery: Unidirectional E-glass alignment allows the rod to bend up to 180° upon vehicle or snowplow contact, returning to true vertical without permanent fatigue or snapping.


Weather and Corrosion Stability: Inert to road salts, calcium chloride, and freeze-thaw cycles. Does not rust like steel or rot and splinter like wood.


Nighttime Retroreflectivity: Mechanically bonded prismatic sheeting delivers high-angle angular reflectivity, ensuring long-range visibility under commercial vehicle headlights.


Surface Integrity: Integrated synthetic surface veil prevents glass fiber breakout (fiber bloom) during prolonged UV exposure.





Applications

Winter Road Maintenance: Highway boundaries, drainage culverts, and fire hydrant indexing for snowplow routing.


Municipal Infrastructure: Property line demarcation, underground utility path tracking, and construction zone perimeters.


Commercial Landscaping: Parking lot drive aisles, turf protection, and sidewalk edge delineation.


Agricultural Settings: Subsurface drip irrigation line marking and property fencing identification.

Fiberglass Reflective Stakes suppliers



OEM/ODM Customization Services

Fiberglass Marker Stakes


Dimensional Flexibility:

Custom diameters, wall thicknesses (solid or hollow core), and exact overall lengths.



Reflective Band Engineering

Customized tape placement heights, custom widths (3 in to 9 in), and corporate logo printing on retroreflective layers.

Fiberglass Reflective Stakes
Fiberglass Marker Stakes suppliers


Hardware Assembly

Pre-installed steel ground anchors, protective rubber top caps, or heavy-duty pull-pin connectors.



Retail & Bulk Packaging

Private label header cards, barcode labeling, customized bundle counts (packs of 20, 25, 50), and ISPM 15 heat-treated export pallets.

Fiberglass Reflective Stakes suppliers



Quality Control & Testing Standards

Raw Material Verification

Incoming glass roving batches and liquid polyester resins tested for tensile modulus and gel time consistency.

Dimensional Inspection

Inline laser micrometers monitor outer diameter variance within ±0.1 mm limits.



Mechanical Validation

Routine three-point flexural bend tests and low-temperature drop-impact verification per internal protocol.

Adhesion Audit

Automated peel-strength testing on retroreflective tape bonds to ensure resistance to peeling under ice friction.



Packaging & International Shipping

Bundle Strapping

Interleaved with protective plastic film and tightly banded with high-tension strapping to prevent transit vibration scuffing on reflective surfaces.

Pallet Configuration

Stacked on fumigation-free wooden or plastic pallets, reinforced with corner edge protectors and industrial stretch wrap.

Container Optimization

Standard loading configured for 20-foot (20GP) and 40-foot high-cube (40HQ) ocean containers to maximize freight efficiency for bulk buyers.



Manufacturing Capabilities & Supply Stability



Fiberglass Reflective Stakes suppliers

Factory Direct Output

12 automated pultrusion lines yielding an annual capacity exceeding 5 million linear meters.

Fiberglass Marker Stakes suppliers

Material Traceability

Complete batch tracking from raw glass roving input to finished pallet dispatch.

Fiberglass Reflective Stakes

Global Compliance

Manufacturing operations aligned with ISO 9001 quality management requirements.





Frequently Asked Questions



Q: How do fiberglass marker stakes perform under low-temperature snowplow impacts?

A: Unlike rigid steel or brittle plastic posts that permanently bend or shatter at sub-zero temperatures, pultruded fiberglass features high elastic strain energy. It flexes completely upon impact from snowplow blades or vehicles and snaps back to its original vertical alignment without shattering.

Q: What is the recommended method for installing stakes into frozen ground?

A: For hard-packed or frozen soil, use a heavy-duty steel pilot punch rod or pneumatic driver to create an initial pilot hole (6 to 8 inches deep). This prevents damage to the pointed tip or top end of the fiberglass stake during manual or mallet-driven installation.

Q: What ASTM standard does the retroreflective tape comply with?

A: The applied reflective sheeting meets ASTM D4956 specifications (available in Engineer Grade or High-Intensity Prismatic). Retroreflectivity coefficients are calibrated for high-angle visibility under headlamp illumination.

Q: What is the minimum order quantity (MOQ) for custom-printed reflective tape or non-standard lengths?

A: For standard stock items (orange/yellow, 48 in to 72 in lengths), MOQ is 1 pallet (typically 500 to 1,000 pieces). For custom Pantone colors, private-label packaging, or custom tape printing, the MOQ is 2,000 pieces per specification.

Q: How are the stakes prevented from sticking or scratching during ocean freight?

A: Stakes are bundled in reinforced polyethylene sleeves with protective interlayer spacing, then secured inside heavy corrugated master cartons or strapped firmly to export pallets to eliminate surface friction during transit.

As one of the most professional marker stakes manufacturers and suppliers in China, we're featured by quality products and good service. Please rest assured to wholesale bulk slip-resistant marker stakes for sale here from our factory. Contact us for pricelist.
