Product Overview



FRP Standard Profiles are structural shapes manufactured via continuous pultrusion, combining continuous E-glass reinforcements with thermosetting resin matrices (Isophthalic Polyester, Vinyl Ester, or Epoxy). Designed for high-load-bearing applications in corrosive or non-conductive environments, these profiles provide a high strength-to-weight ratio, replacing structural steel (carbon steel/stainless steel) and aluminum where electrochemical corrosion or electrical conductivity presents operational failure risks.

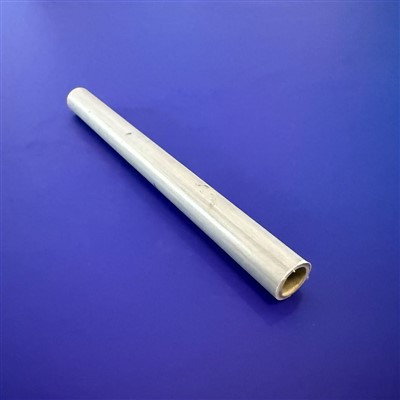

  • FRP Round Tube
    This FRP round tube is specially customized for multiple scenarios in industries such as industry, agriculture, and power fundamentally It! solves the pain points of traditional metal round tubes, such as easy corrosion, electrical...
    view more

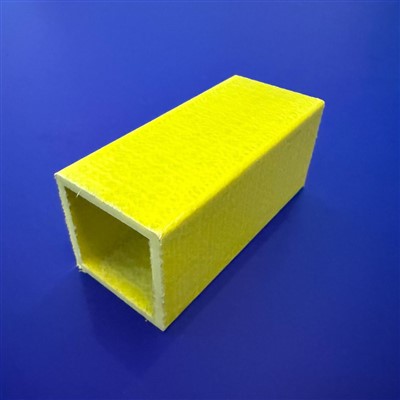

  • FRP Square Tube
    FRP square tube is a pultruded structural profile designed for multi-scenario support and frame building. It delivers outstanding acid/alkali/salt corrosion resistance, ideal for long-term use in chemical, sewage, aquaculture and other...
    view more
  • FRP Rectangular Tube
    This FRP rectangular tube is specially customized for wide - load - bearing scenarios! It mainly solves the support requirements of large - span frames and platforms. Its bending - resistant and stable characteristics are suitable for...
    view more

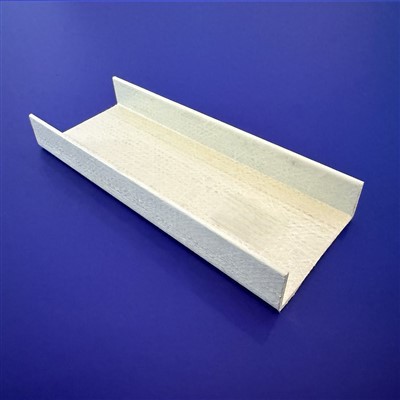

  • FRP U Channel
    The FRP U-shaped channel is specially customized for drainage and guide strip scenarios! It mainly solves the needs of drainage, cable routing, and edge protection. Its smooth drainage feature is suitable for scenarios such as roof...
    view more
  • FRP Angle
    FRP angle specially customized for right-angle reinforcement and frame connection! It mainly addresses the needs of structural reinforcement, frame splicing, and equipment support. Its anti-corrosion support feature makes it suitable...
    view more

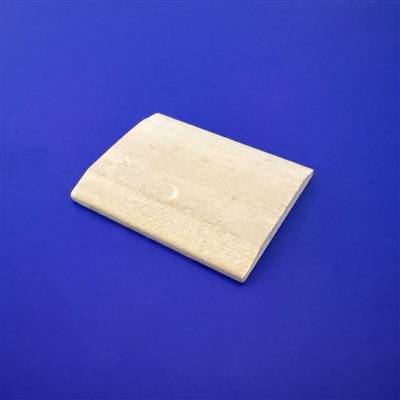

  • FRP Flat Bar
    FRP flat bars specially customized for flat support and edge reinforcement! They mainly meet the needs of platform edges, equipment support, decorative strips, etc. Their smooth and wear-resistant characteristics are suitable for...
    view more
  • FRP T Profile
    An FRP T profile specially customized for separation, positioning, and structural support! It mainly addresses the needs of platform separation, equipment positioning, and decorative strips.
    view more

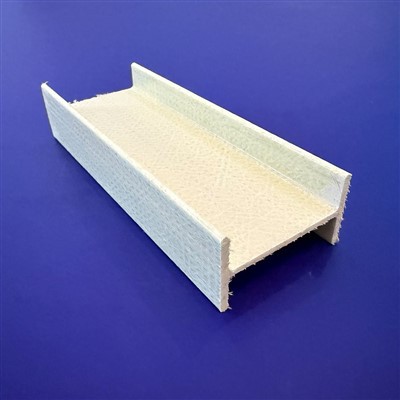

  • Fiberglass H Beam
    An FRP H-beam specially customized for large-span load-bearing scenarios! It mainly meets the needs of industrial platforms, bridges, equipment supports, etc. Its superb bending resistance makes it suitable for large-span structures....
    view more

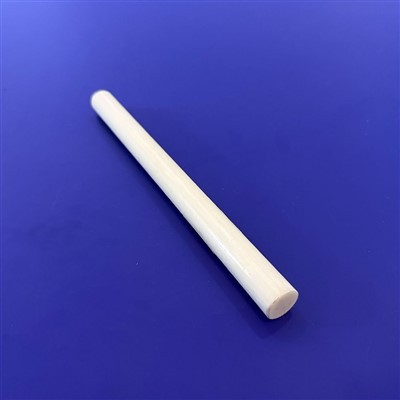

  • FRP Solid Rod
    An FRP solid Rod specially customized for solid support and insulating cores! It mainly meets the needs of equipment cores, insulating supports, tent poles, etc. Its high-strength and insulating properties are suitable for scenarios...
    view more

Technical Specifications


Parameter

Specification / Value

Test Standard

Manufacturing Process

Thermal Pultrusion

ISO 9001 Factory Standard

Reinforcement

E-Glass Roving, Continuous Filament Mat (CFM)

ASTM D5733 / ISO 3598

Resin Matrix Options

Isophthalic Polyester, Vinyl Ester (Corrosion-grade), Phenolic

ASTM C581 (Chemical Resistance)

Glass Content (by weight)

60% – 65%

ASTM D2584 / ISO 1172

Standard Profiles

Angle, Channel, Wide Flange I-Beam, Equal/Unequal Leg, Square/Round Tube, Solid Rod, Flat Bar

Drawing Tolerance: +/- 0.15 mm

Tensile Strength (Longitudinal)

240 -- 290 MPa

ASTM D638 / ISO 527-4

Flexural Strength (Longitudinal)

260 -- 320 MPa

ASTM D790 / ISO 14125

Izod Impact Strength (Unnotched)

150 -- 200 kJ/m^2

ASTM D256

Water Absorption (24 hrs)

< 0.4%

ASTM D570

Dielectric Strength

10 -- 12 kV/mm (Perpendicular to laminate)

ASTM D149

Flame Retardancy

Flame Spread Index < 25 (Class 1)

ASTM E84 / UL 94 V-0 available

Standard Lengths

6,000 mm, 12,000 mm, or custom cut-to-length

--



FRP Flat Bar



Key Features & Benefits

Corrosion Resistance: Vinyl ester matrices withstand aggressive chemical environments, including concentrated acids, caustic alkalis, and saline splash zones, preventing rust and galvanic degradation common in metals.


Structural Weight Reduction: Density ranges from 1.7 -- 1.9 g/cm^3 (approximately 75% lighter than steel and 30% lighter than aluminum), reducing structural dead loads and simplifying manual site installation without heavy lifting equipment.


Electrical and Thermal Insulation: Non-conductive properties eliminate grounding requirements and prevent short circuits near high-voltage electrical installations. Low thermal conductivity reduces heat transfer through structural frameworks.


Dimensional Stability: Controlled pulling speed and uniform thermal curing in heated steel dies limit longitudinal and transverse warping, maintaining straightness within 1.5 mm per meter.





Applications

Chemical Processing Plants: Support frameworks, pipe racks, handrail systems, and access walkways exposed to chemical fumes and spillage.


Marine & Offshore Structures: Pier decking supports, ladder rungs, instrument stands, and platform framing exposed to continuous saltwater immersion and cyclic wave loading.


Water & Wastewater Treatment: Tank covers, baffle walls, weir plates, and grating support beams subjected to hydrogen sulfide gas and moisture.


Electrical Utilities: Transformer barrier walls, substation walkways, ladder rails, and non-magnetic equipment frames.

FRP Square Tube factory



OEM/ODM Services

FRP Square Tube suppliers


Custom Resin Formulations

Addition of specific UV stabilizers, anti-static carbon additives, or brominated fire retardants tailored to project specifications (e.g., DIN 5510-2 railway standards or UL94 V-0).



Profile Geometry Customization

Tooling development for custom die profiles based on engineering CAD drawings (STEP/IGES formats). Sample lead time for custom dies is 15 business days.

FRP Square Tube
FRP Angle


Secondary Machining Operations

CNC cutting, pre-drilling, countersinking, milling, and slotting performed prior to shipment to reduce on-site labor time.



Color Matching

Pigmentation integrated directly into the resin matrix (standard RAL colors including Yellow RAL 1018, Gray RAL 7035, and Green RAL 6029) to eliminate the need for secondary painting.

FRP Angle suppliers



Quality Control & Testing

Raw Material Verification

Incoming glass rovings and liquid resins undergo batch testing for viscosity, gel time, and tex count before release to production lines.

Process Monitoring

Automated pulling systems maintain constant line speed, while multi-zone die heaters control exothermic curing profiles to prevent internal micro-cracking.

Mechanical Testing

In-house laboratory testing evaluates three-point flexural strength, interlaminar shear strength (ASTM D2344), and Barcol hardness (ASTM D2583) on sample coupons pulled from every production shift.

Third-Party Validation

Certified test reports (e.g., SGS, TUV, or Intertek) can be arranged upon request for critical infrastructure projects requiring independent verification.





FRP Flat Bar suppliers



Packaging & Shipping

Capacity & Lead Time: Operating 16 automated pultrusion lines with a monthly output exceeding 300 tons. Standard stock orders ship within 7–10 days.


Bundling: Profiles are bundled using rigid wooden dunnage and heavy-duty composite strapping, separated by LDPE protective foam sheets to prevent surface abrasion during transit.


Container Loading: Standard lengths (5.8 m for 20ft containers; 11.8 m for 40ft High Cube containers) are packed and secured with internal blocking timbers to eliminate shifting during ocean freight.


Documentation: Each shipment includes a Certificate of Analysis (CoA) matching batch numbers to raw material test records and dimensional inspection reports.



Why Choose Us

Direct Pultrusion Manufacturing

Direct control over pulling speed, die temperature, and fiber tension, removing intermediary supply chain markups.

In-House Die Tooling Workshop

Internal tool and die design department shortens prototyping cycles from concept to sample sign-off.

Export Compliance

Established supply chains delivering structural FRP profiles to engineering contractors across North America, Europe, and the Middle East, complying with ASTM, ISO, and CE structural guidelines.





Frequently Asked Questions



Q: How do FRP profiles perform under ultraviolet (UV) radiation?

A: Standard profiles incorporate UV inhibitors blended directly into the resin matrix. Additionally, a synthetic surface veil (polyester veil) is applied during pultrusion to create a resin-rich exterior layer (0.25 -- 0.5 mm thick) that prevents glass fiber blooming and surface degradation from prolonged solar exposure.

Q: What are the standard dimensional tolerances for pultruded structural shapes?

A: Cross-sectional dimensions conform to +/- 0.15 mm to +/- 0.5 mm depending on profile size. Length tolerance for standard cut profiles is +/- 3.0 mm. Straightness deviation does not exceed 1.5 mm per linear meter.

Q: Are load tables and finite element analysis (FEA) data available for structural design?

A: Yes. Comprehensive technical data sheets containing sectional properties (moment of inertia, radius of gyration, section modulus) and allowable load spans are available for engineering validation. CAD blocks (STEP/DWG) can be provided upon request.

Q: Can I request physical samples before placing a bulk order?

A: Yes. We offer standard profile cut samples (300 mm lengths) free of charge for material evaluation, with freight collect via your courier account (DHL/FedEx). Custom profile sample production can be arranged upon tooling confirmation.



modular-1
Request a Quote

To receive a detailed quotation including freight estimates, lead times, and sample requests, please provide the following engineering parameters via our inquiry form:
Profile Type & Dimensions (e.g., Equal Angle 100 x 100 x 10 mm)
Resin Selection (Isophthalic Polyester vs. Vinyl Ester)
Required Quantity (in linear meters or pieces)
Destination Port / Jobsite Location
Secondary Operations / Sample Requirements
